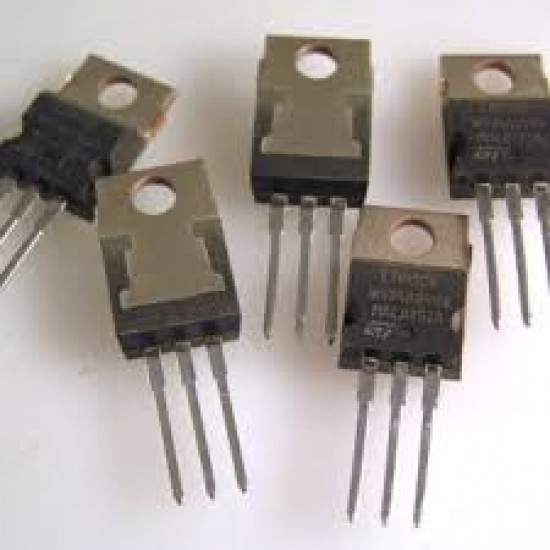

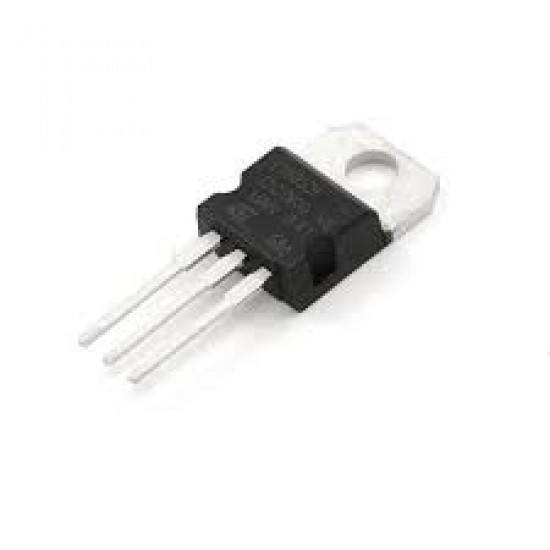

LM7805CT/NOPB, 1 Linear Voltage, Voltage Regulator 1A, 5 V 3-Pin, TO-220

1 Linear Voltage, Voltage Regulator 1A, 5 V 3-Pin, TO-220

Attribute                                                                                         Value

Brand                                                                                              Texas Instruments

Maximum Output Current                                                          1 A

Regulator Type                                                                             Linear Voltage

Output Voltage                                                                             5 V

Number of Outputs                                                                      1

Line Regulation                                                                             150 mV

Load Regulation                                                                                          150 mV

Mounting Type                                                                              Through Hole

Polarity                                                                                           Positive

Package Type                                                                                TO-220

Quiescent Current                                                                        8.5 mA

Pin Count                                                                                        3

Output Type                                                                                   Fixed

Dimensions                                                                                    10.16 x 4.7 x 8.89 mm

Height                                                                                             8.89 mm

Minimum Operating Temperature                                            0 °C

Minimum Input Voltage                                                              7.5 V

Maximum Operating Temperature                                           +70 °C

Length                                                                                             10.16 mm

Maximum Input Voltage                                              35 V

Width                                                                                              4.7 mm
